Strait Raven was built in 2013 by SuperPort Marine Services, Port Hawkesbury, NS, Canada. It is a multi-purpose supply tug with raised focsle head and superstructure forward with large, wide, clear working deck aft. The vessel is designed for work in remote, shallow locations and features exceptional close quarters handling capability.
Particulars
| LOA: | 19.8 metres |
| Beam: | 6.1 metres |
| Depth: | 3.37 metres |
| Vessel Type: | Multi-Purpose Tug / Supply |
| Complement: | 6 Crew |
| Classification: | Near Coastal Voyage Class II, Limited to HT3 |
| Main Engines: | 2 x Cummins KTA – 19, 1000 hp continuous / 1200 hp intermediate |
| Propulsion: | 50” x 40” fixed pitch, Thruster Kobelt 85 hp |
| Cruise Speed: | 9 knots |
| Max Speed: | 10 knots |
| Fuel Capacity: | 20,500 litres |
| Water Capacity: | 3,000 litres |
| Owner: | Superport Marine Services Ltd |
| Shipyard: | Superport Marine Services Ltd |
Machinery and Auxiliary Systems
Main Engine: 2 x Cummins KTA – 19 1000 hp continuous / 1200 hp intermediate

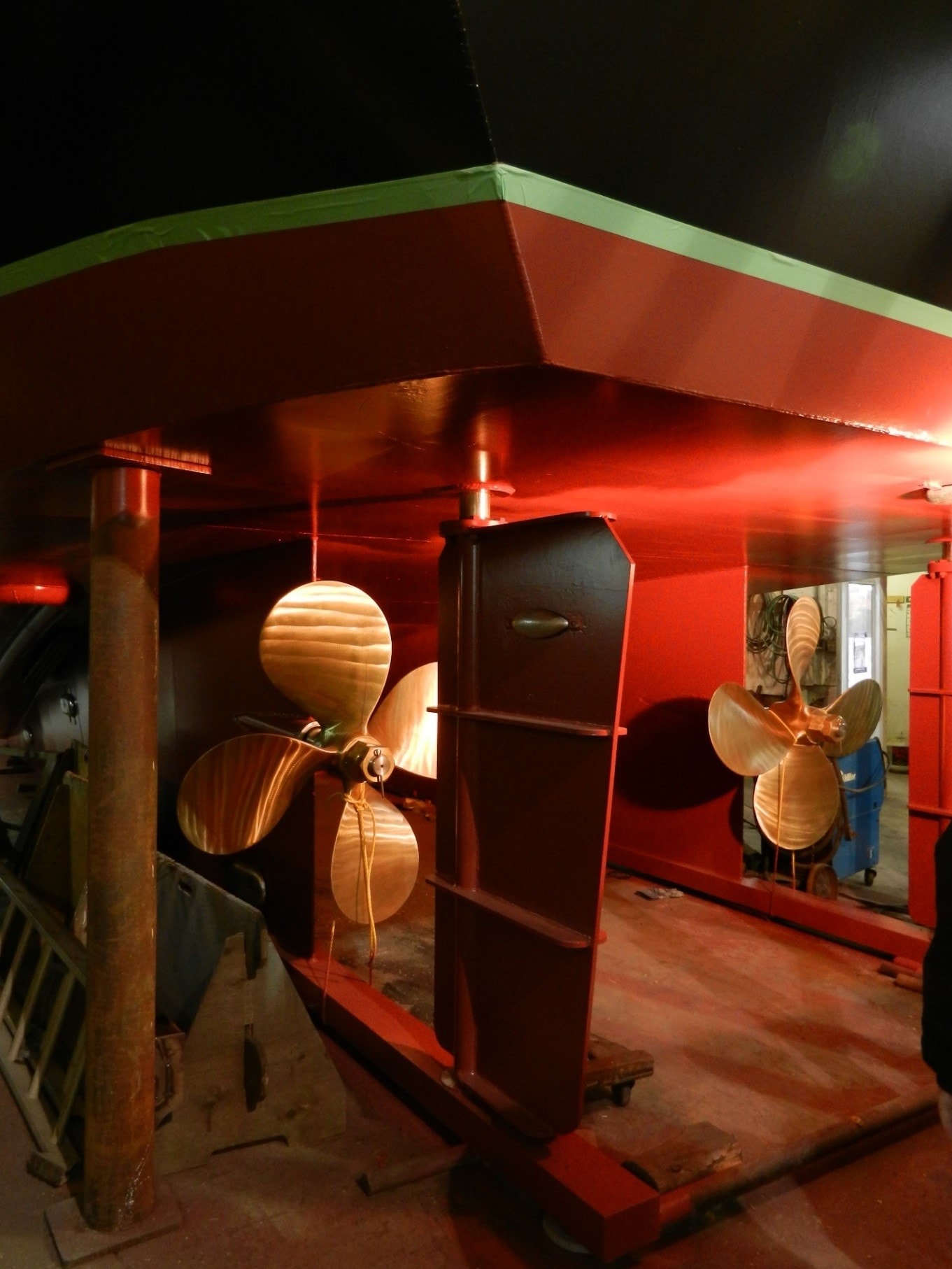

Propellers: (2) 50” x 40” fixed pitch
Thruster: Kobelt 85 hp
Outfitting
Tow Winch: Hawbolt single drum with 1000’ ¾” tow wire; warping head
Construction
Steel Hull, designed using Lloyd’s Special Service Craft as guidance.
Design Drawings

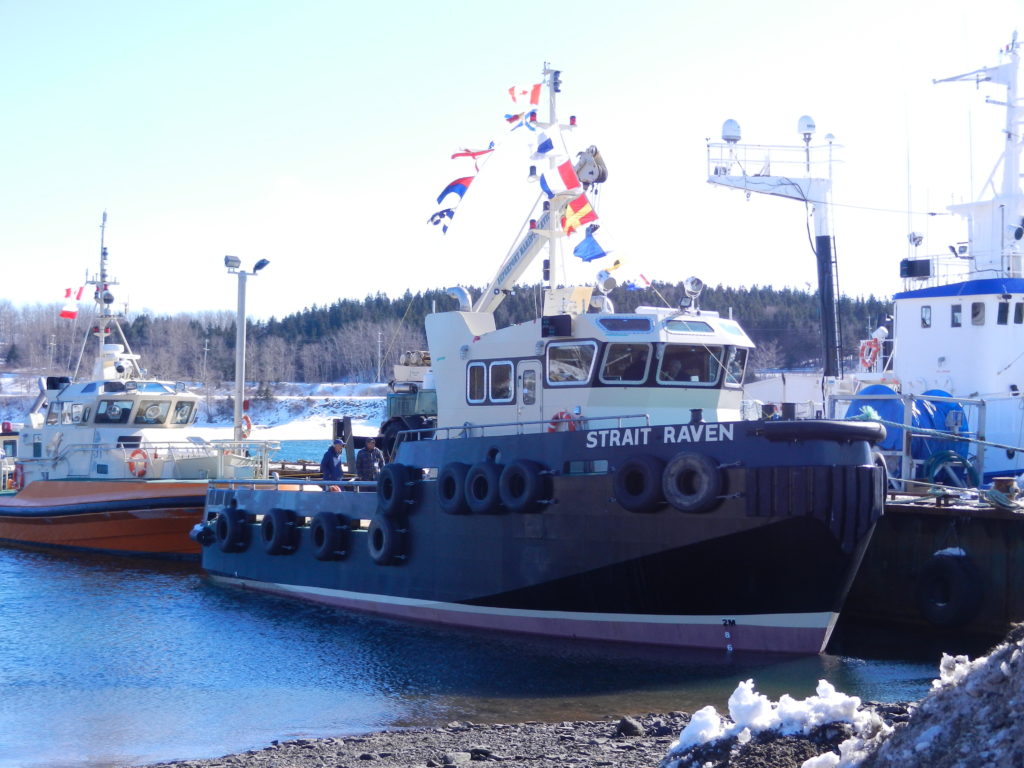

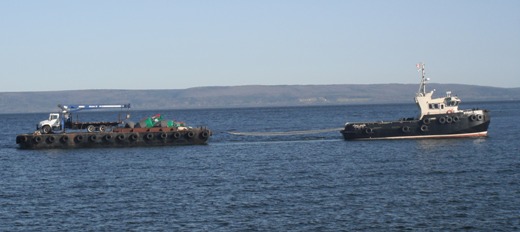

Vessel Renders & Pictures
